You describe the antenna (and other nearby structures if desired) as a group of straight conductors, choosing the orientation, length, and diameter.

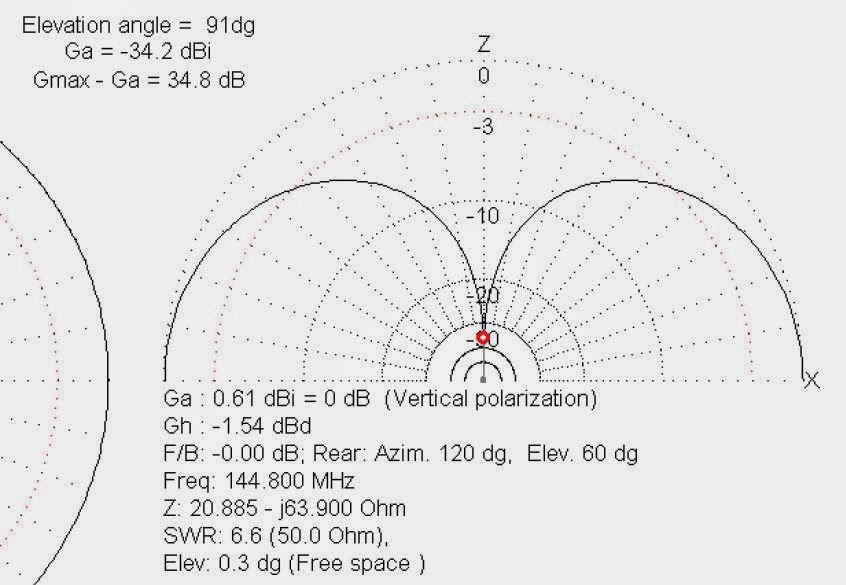

More experienced modelers can use the gradient style andor the genetic algorithm based optimizers to improve their designs.ĮZNEC plots azimuth and elevation patterns tells you gain, feedpoint impedance, SWR, and current distribution finds and reports beamwidth, 3-dB pattern points, fb ratio, takeoff angle, sidelobe characteristics and more.Īll information, including patterns, can be displayed on screen or printed on any Windows compatible printer.Īnd its easy to use with EZNECs menu structure, spreadsheet-like entry, and many shortcut features.
